THE MOST EFFECTIVE AND SAFE SOLUTION IN LUMEN STERILIZATION
Any type of medical tools, plastic, lumen products in any different length and diameter, electro mechanical products and surgical items, single and multiple channels, flexible endoscopes and similar complex long products can be safely sterilized. Long and complexed endoscope sterilization and fourth channeled/ 4,5 meter long multiple flexible lumen scopes can be sterilized.

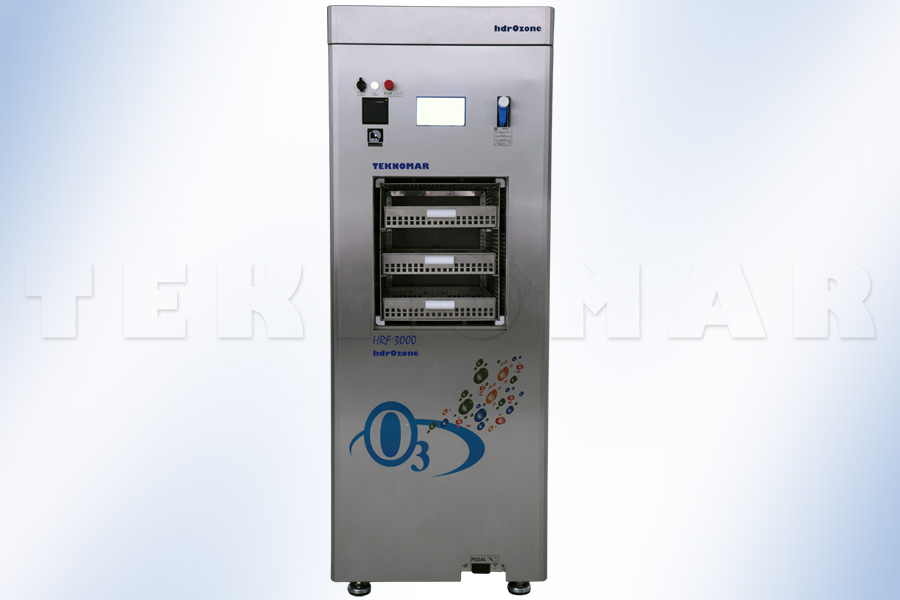

HRF 3000 hdrOzon sterilization device is manufactured for the first time by -TEKNOMAR LTD.- System is working between 37 C - 45 C, utilizing double sterilant as hydrogen peroxide (H2O2) and ozone (O3) along with plasma.
The device uses 60% Hydrogen Peroxide (H2O2) solution and Medical Oxygen for safe and no-limit sterilization. In this way, thanks to the intelligent program design, Ozone and Hydrogen Peroxide are used together for the most effective sterilization at the lowest dose.
Materials that are sterilized by Hydronium Heavy Molecule Plasma are offered ready to use without the need for extra ventilation. There is no harmful waste, only water vapor and oxygen. For this reason, as well as safe sterilization, it offers a safe use for personnel and the environment.
Sterilization technique with the effect of heavy molecules, radicals, hydroxyls and ions, with the application of H2O2 and O3, HYDRONIUM (HO3, HO4, H2O3, H2O4, HO5, OOH, H3O ... etc)
The HRF 3000 hdrOzon sterilization device uses a fixed-programmed sterilization cycle, which eliminates user error in sterilization safety. There is no need to classify the materials to be sterilized and to choose the appropriate cycle and program as in old technology devices. Mixed loading can be done.

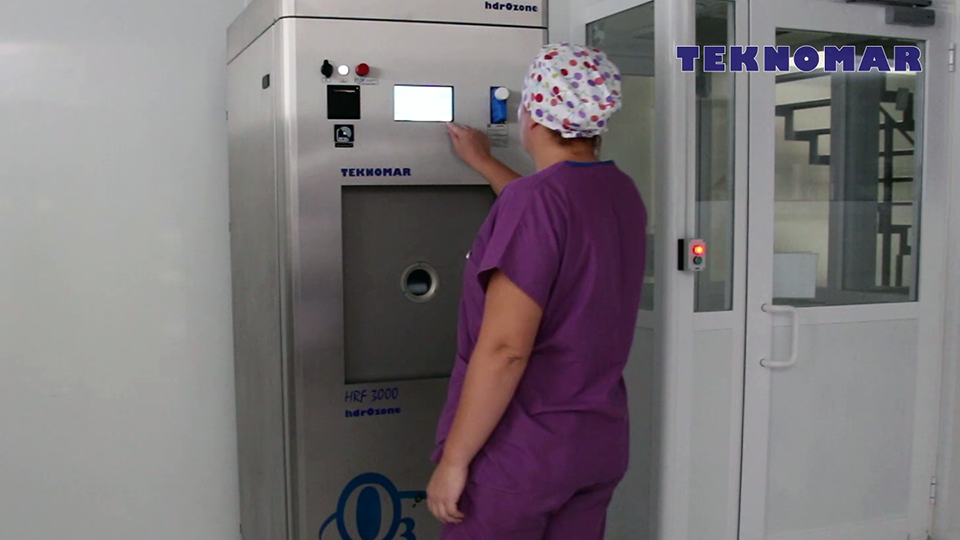

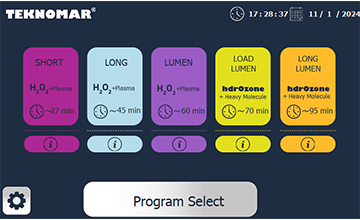

Wide colorful touch screen enables users to select sterilization program quickly and friendly.
Device is compliance with ISO 14937
Packing Specifications: cellulose-free, synthetic materials such as polypropylene or tyvec; Sterilization of fabric, cellulose and liquid is not suitable for this sterilization method.
The HRF 3000 hdrOzon sterilization device can be used as a standalone Hydrogen Peroxide Sterilization Plasma device besides its superior properties.
HdrOzone, Hydronium Heavy Molecule Plasma Sterilization Device performs sterilization of medical products and other materials with similar properties, except for conventional type disposable materials. No apparatus is needed for the sterilization of complex lumen materials.
| Endoscopes | |
|---|---|
| Rigid Endoscopes | Flexible Endoscopes |
| Laryngoscope Arthroscopy Laparoscopes Trocar Cannula Trocar Case Resectoscope etc.. |
Bronchoscopy Ureteroscopy hysteroscopy cystoscopy Koledoskop etc.. |
| Device & Tool | |
| Implants Defibrillator Pedals ElectroKoter Products Esophageal Dilators Kri-Probe Doppler Head Pressure Transducer Cables Endoscopic Products etc.. |
Fiber Optic Cables Laser Hand Products Fiber Accessories Ophthalmic Lenses Radiation Therapy Instruments Surgical Power Equipment Drilling & Cutting Tools Ultrasound Probes Video Camera and Connection Apparatus etc.. |
| Sterilization Method | Ethylene Oxide | Hydrogen peroxide | HdrOzone Hydronium Heavy Molecule |
|---|---|---|---|
| Teknomar | EO - C2H4O | H2O2 | Hydronium (H3O) |
| Efficacy | Effective | Limited Efficacy | High Efficacy on Lumen Products |
| Cycle Time | ~ 4-12 hrs | ~ 70 Minutes | ~ 95 minutes |
| Cost of Cycle | ~ 12,00* € | ~9,00* € | ~ 10,00* € |
| Cartridge Storage | Challenging | Appropriate | Appropriate |
| Dangerous | High | Environmental Friendly | Ecologic |
| Preparation for Sterilization | Medium | Long | Short |
| Capacity | Limited Capacity | Limited Capacity | High Capacity |
| Material Compatibility | Mixed Material | Various Programs for Different Products | Mixed Material |
| Pollutant | Risky | Ecologic | Ecologic |
| External Connection | Needed | No Needed | Needed |
| Working Temperature | 37-55 ℃ | 37-55 ℃ | 37-45 ℃ |
| Sterility Assurance Level (SAL) | 10-6 | 10-6 | 10-6 |
| Maintenance | Expensive | Reasonable | Reasonable |
| Installation | Challenging | Easy | Easy |
| Working Principle | ETO Only | H2O2 Only, but Upgradable | 1: H2O2 2: H2O2 & O3 3: O3 |
| Diameter and Length | Limitless | 1 mm Ø - 400 mm / 2 mm Ø 1200 mm | Ø 0,1 mm inner diameter ../.. Min. 4,5 meter Length |
| Residue on Product | Risky | No residue on Product | No Residue on Instruments and Long Lumen Products |
| Cost of Device | ~ 20.000,00 €* | ~ 40.000,00 €* | ~ 80.000,00 €* |
| Overall Score | 7/18 | 8/18 | 16/18 |
The chart is showing the comparison of sterilizers in terms of different parameters and properties.
Although, sterilization is certain on each of the methods, there are variables to consider for end users perspective.
The ranking shows that the most suitable sterilizer is Hydronium Heavy Molecule Plasma Sterilizer with 16/18 points. The second one is Hydrogen Peroxide Gas Plasma Sterilizer in terms of Cost and Capability-with 8/18. The third is Ethylene Oxide Gas Sterilizer with limited advantages and high considerable risks 7/18.
| MODEL | 3S75 | 3S125 |
|---|---|---|
| TYPE | HRF 3000 HDROZON | HRF 3000 HDROZON |
| SCREEN | Touch Screen 7" | Touch Screen 7" |
| EXTERIOR DIMENSIONS (W-D-H) (mm) | 730 x 1010 x 1980 | 730 x 1010 x 1980 |
| CHAMBER INTERIOR DIMENSIONS (W-D-H) (mm) | 440 x 370 x 700 | 440 x 500 x 700 |
| CHAMBER VOLUME (Lt) | 113 | 154 |
| CHAMBER EFFECTIVE VOLUME (Lt) | 92 | 131 |
| CARTRIDGE H2O2 | 120 cc | 120 cc |
| POWER* (WATT)(Max.) | 3200 W | 3200 W |
| WORKING VOLTAGE | 230 V AC, 50/60 Hz | 230 V AC, 50/60 Hz |
| EXTERIOR CHASSIS MATERIALS | Stainless Steel 304 | Stainless Steel 304 |
| CHAMBER MATERIAL | Stainless Steel 316 | Stainless Steel 316 |
| Type (Block) | Block Type Hdrozone, Hydronium Heavy Molecule Low Temp Plasma Sterilizer |
| Class | CLASS II B |
| Sterilization Specification | All Microorganisms (all bacteria forms, all viruses all fungi forms) and all prions |
| Models | 3S75 – 3S125 |
| External Oxygen Connection | Hospital Type Medical Oxygen ≤ 90% |
| H2O2 Concentration | Min %45 H2O2 Concentration and above Concentration sterilization efficiency |
| H2O2 Cartridge Feature | 45% - ... - 60% H2O2 / 100 cc - 150 cc / Safety vent |
| Cartridge Cycle Quantity | 5 cycles, 7 cycles, 10 cycles, 15 cycle cartridge/cassette types are available. |
| Cartridge Shelf Life | It is 6 months from the production date at 15-25 months. |
| Waste H2O2 Drainage | Yes (1 Lt disposable) |
| Compatible Packaging Materials | Tyvek® Sterilization Roller, Wrap Papers, Various Surgical Container Systems |
| Unsuitable Materials | Textile, Cellulose, Liquids |
| Indicators | Chemical and Biological Indicators |
| Vacuum Pump and Maintenance Periods | 6 Months (350 cycles) and 1 year (700 cycles) vacuum pump oil change is also performed with the device maintenance. |
| Other Technical Specifications | The device is a mobile block type and the carriage has easy transport and installation features with 4 wheels locked under the cabin. External Hospital Type Oxygen Gas (Medical Tube) and Electrical need. No need for additional waste disposal system. |
